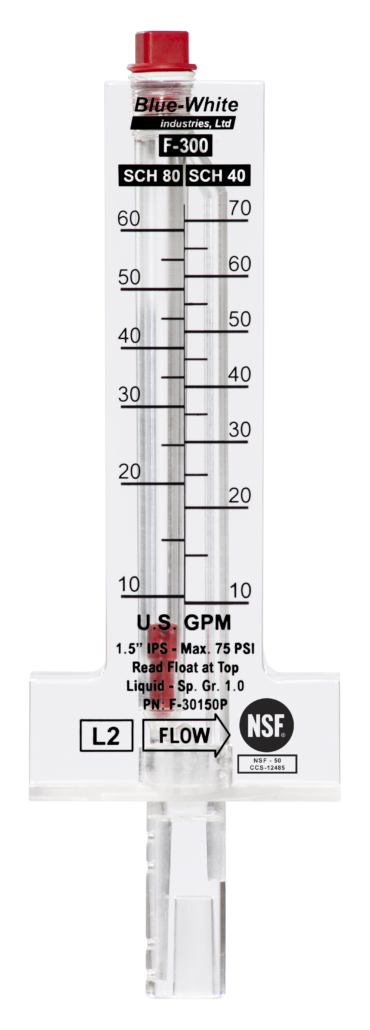

F-300

Features:
Cl	am	p-	n	ns	ert	io	M	ou	nt

! 1” through 8” pipe sizes.

! Flow rates from 4 to 1900 GPM.

! Resistant PVDF internal float materials.

! One piece machined acrylic body.

! Mounts to existing pipe. No unions or adapters required.

! Models for mounting on horizontal or vertical pipe.

! Mounting clamps and gasket included.

! NSF Listed

Pipe Requirements	IPS inch pipe size (ASTM-D-1785)	Accuracy	1”, 1.25”, 1.5” and 2” pipe size: 5% of rate2.5”, 3”, 4”, 6”, and 8” pipe size: 10% of rate
Max PSI (bar)	75 PSI (5.2 bar) at 70˚F (21˚C)
Fluid Temp Range	0˚ to 190˚F / -18 to 88˚C @ 0 PSI
Ambient Temp Range	0˚ TO 110˚F / -18 TO 43˚C
Note: Temperature and Pressure ratings for meter only. Actual pipe rating	6” - 8” units: 2lb (.91kg)
Power Requirement	No Power Required
Enclosure	NEMA 4X (IP56)
Approximate Ship Wt 1” - 4” units: 1lb (.45kg)
