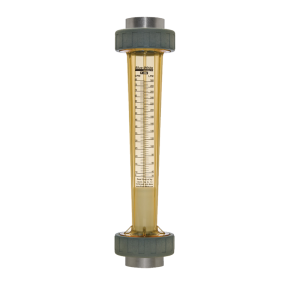

F-462 Series Flowmeter
Ideal for corrosive environments such as Deionized Water (DI Water) or other applications where an all plastic meter is desirable.
Features:
- Designed for in-line installation (Vertical)
- 2” and 63mm Pipe Size
- F/NPT, Socket Fusion and Butt Fusion connections
- Rib Guided Float
- No Metal in the fluid path
- Optional polycarbonate splash shield.
- Not recommended for direct sunlight
Specifications:
| Max. Working Pressure: | 150 psig (10.3 bar) @ 70° F (21° C) |
| Max. Fluid Temperature: | 200° F (93° C) @ 0 PSI |
| Full Scale Accuracy: | +/- 2½ % |
| Meter Body Material: | Polysulfone |
| Adapter Material: |
2″ F/NPT: Polysulfone
2″ Socket Fusion:Polypropylene or PVDF 63mm Butt Fusion:Polypropylene or PVDF |
| Union Nuts: | Glass fiber reinforced Nylon |
| Guide Rod Material: | 316 SS or Hastelloy C-276 |
| O-ring Material: | FKM (Optional EP) |
| Max Pressure Drop: | 2 PSI |
| Approx. Shipping Weight: | 5 lb. (2.27 kg) |
