6500XL

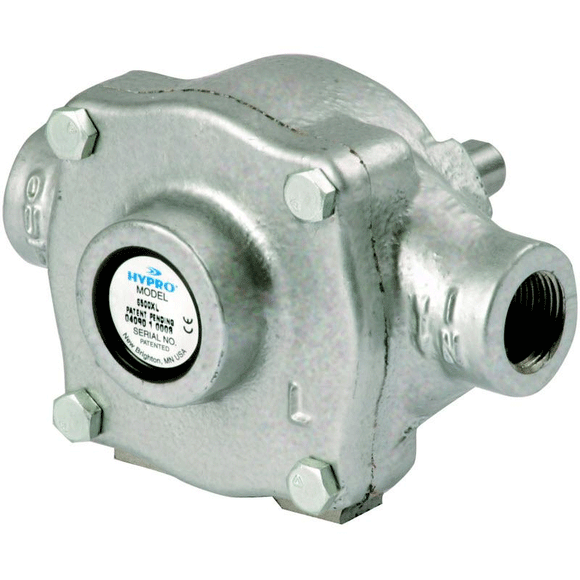

Hypro 6500 Series 6-Roller Pump. Includes 6500C, 6500N, and 6500XL pumps.

Three housings available: Cast iron (C), Ni-Resist (N), or Round-Up®-ready (XL).
This model is the XL - Roundup Ready.

• Max. Flow: 22 gpm at 1200 rpm; 9.7 gpm @ 540 rpm.
• Max. Pressure: 300 psi.
• Max. Rated Speed: 1200 rpm
• Max. Fluid Temperature: 140° F
• Ports: 3/4" female NPT inlet and outlet
• Shaft: 5/8" solid stainless steel
• Not recommended for use with wettable powders.
• Pump Shaft Rotation: Counterclockwise
• Shipping weight: 10 lb
• Housing and Rotor: Silvercast (XL)
• Viton® seals and Super Rollers®
• Suggested repair kit for the 6500 Roller Pump: 3430-0380

If you are experiencing declining performance with your Hypro 6500, it may be time to replace your rollers.

You will need a reverse rotation version of the 6500 if you are driving it with a gas engine and you are pointing the shafts directly at each other. These pumps are designed for a tractor PTO which turns in the opposite sense to that of a gas engine.
