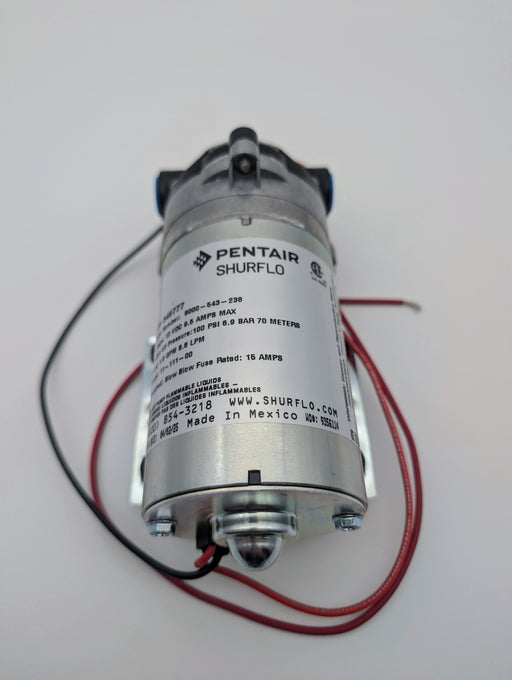

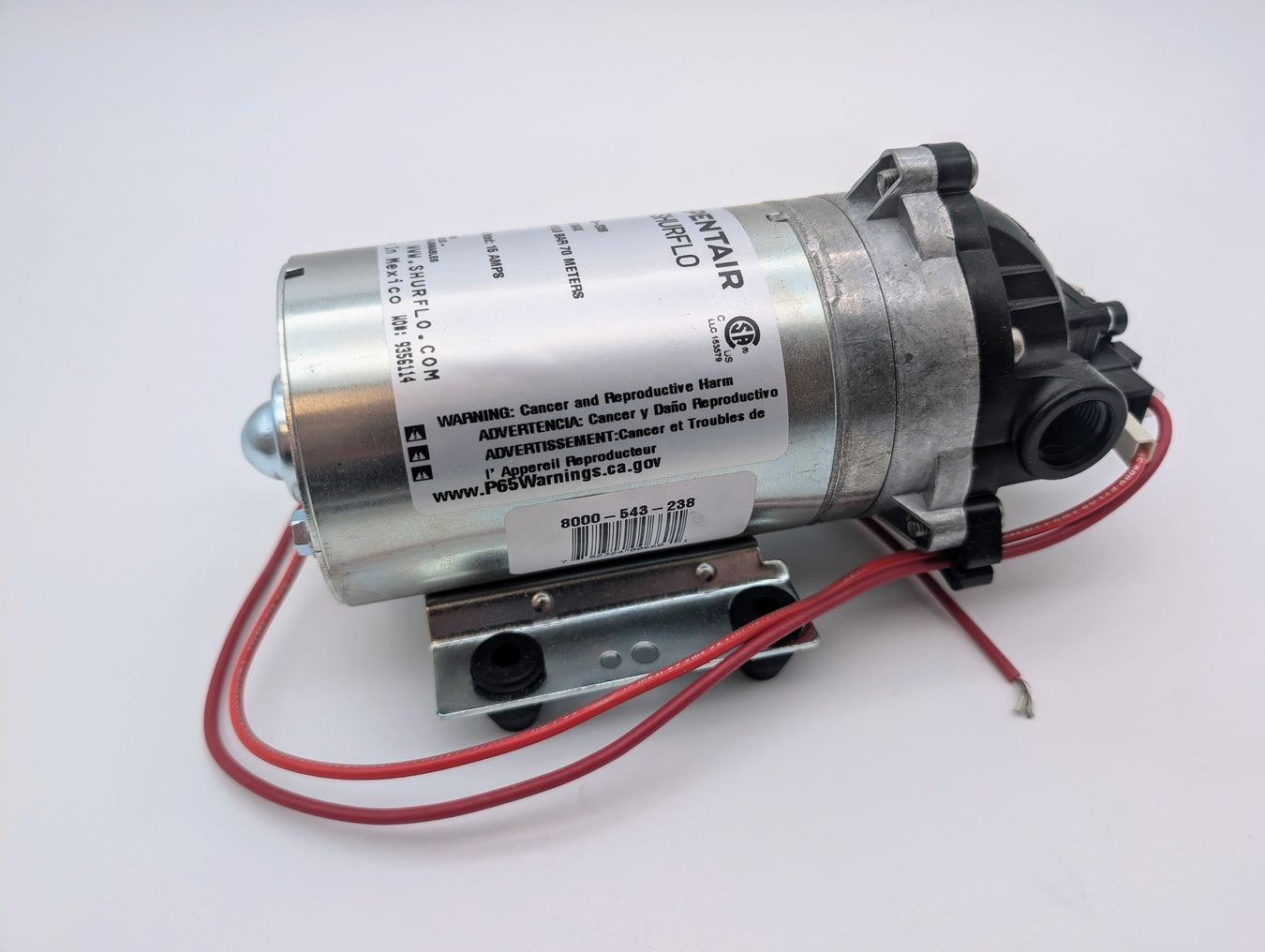

8000-543-238

by Hypro

$206.85

SKU 8000-543-238

Quantity

The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages.

Pressures up to 100 PSI
1.8 GPM / 6.8 LPM open flow
12VDC, 9.5 AMP MAX
3/8" Female Ports
Self-Priming up to 8 Vertical Feet [2.4M]
Chemically Resistant Materials
Designed for Spraying and Fluid Transfer
Can Run Dry without Damage
Built-In Check Valve
Supported for agriculture

MODEL NUMBER: 8000-543-236

PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-111-00
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 80-100 PSI)
Factory Set @100 PSI, Turn On 85 PSI (+/- 5 PSI)
LIQUID TEMPERATURE: 170 Degrees Fahrenheit
PRIME: Self-Priming Up To 10 Ft. Vertical, Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female

MATERIAL OF CONSTRUCTION:
PLASTICS - Polypropylene
VALVES - Viton
DIAPHRAGM - Santoprene
FASTENERS - Zinc Plated Steel

NET WEIGHT: 4.7 LBS (2.13 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Agricultural Spraying
