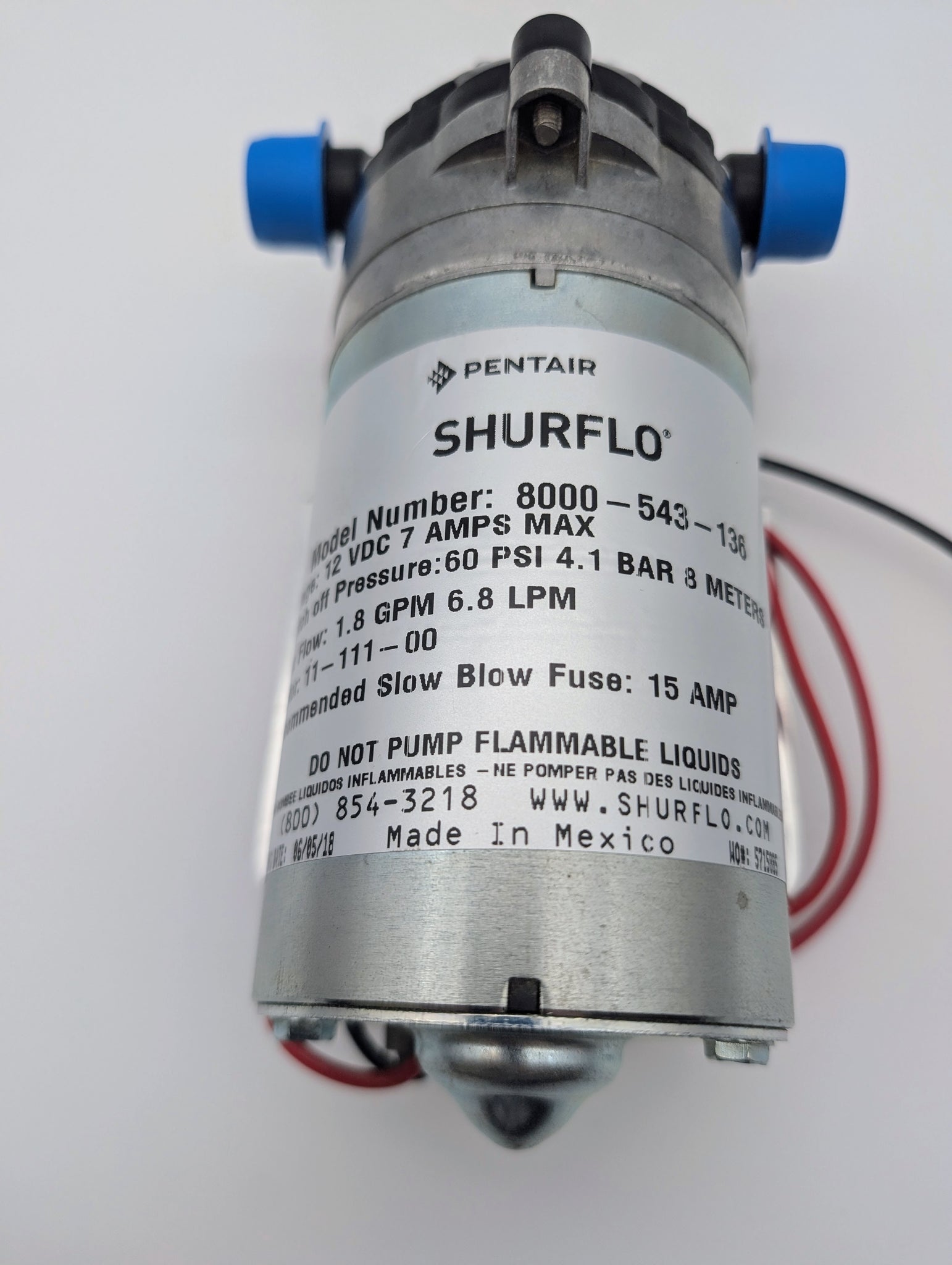

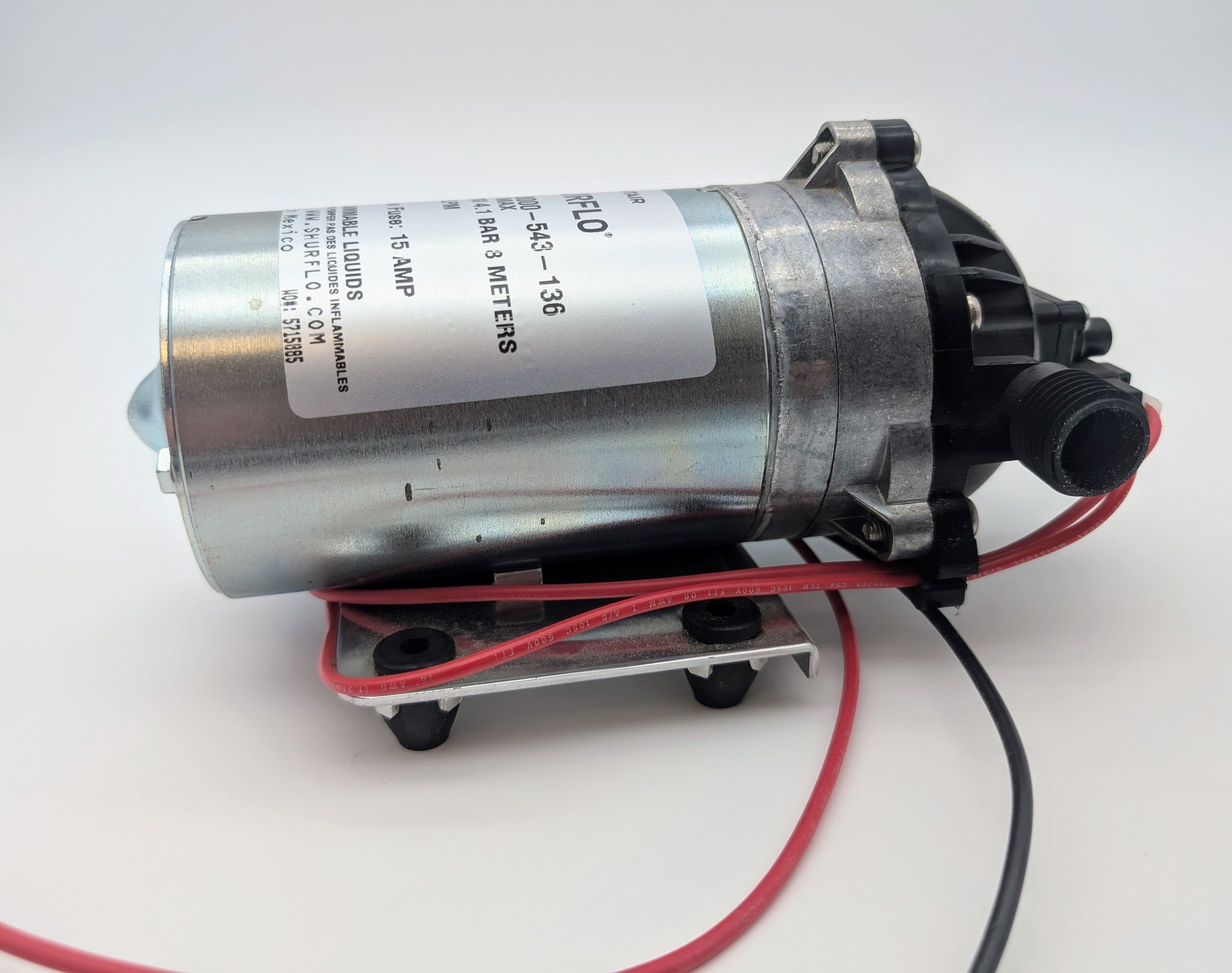

8000-543-136
The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages.
- Pressures up to 60 PSI
- 1.8 GPM / 6.8 LPM open flow
- 12VDC, 7 AMP MAX
- Self-Priming up to 8 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture
MODEL NUMBER: 8000-543-136
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-111-00
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
Factory Set @60 PSI, Turn On 45 PSI (+/- 5 PSI)
LIQUID TEMPERATURE: 170 Degrees Fahrenheit
PRIME: Self-Priming Up To 5 Ft. Vertical, Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2"-18 NPT Male
MATERIAL OF CONSTRUCTION:
PLASTICS - Polypropylene
VALVES - Viton
DIAPHRAGM - Santoprene
FASTENERS - Zinc Plated Steel
NET WEIGHT: 4.1 Lbs (2.13 Kg)
DUTY CYCLE: Continuous
TYPICAL APPLICATIONS: Agricultural Spraying
