The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages.
- 1.6 GPM / 6.1 LPM open flow
- 12VDC, 12 AMP MAX
- 3/8" Female Ports
- Self-Priming up to 8 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture

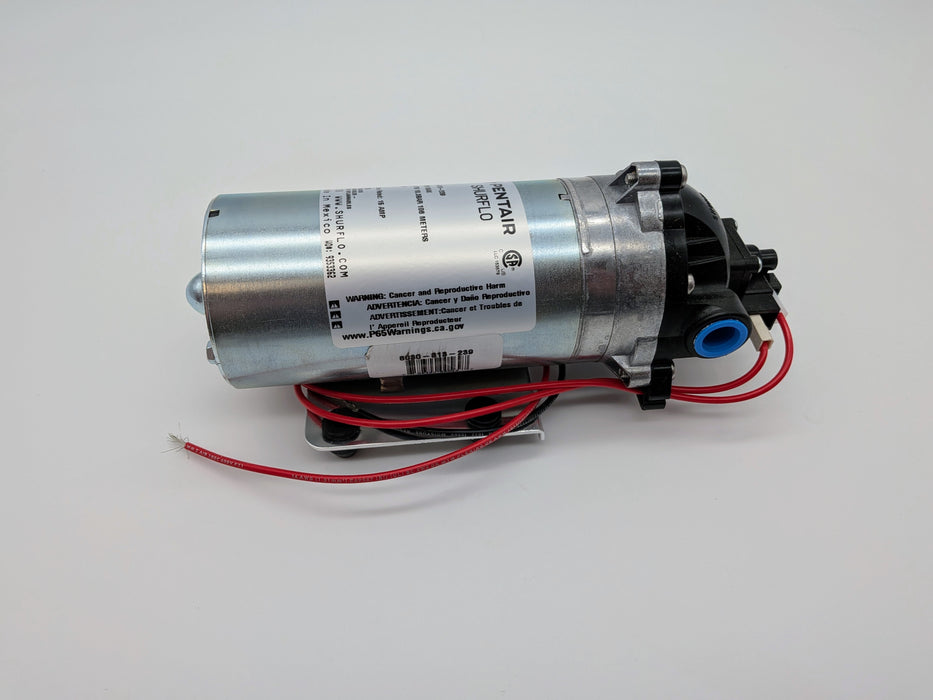

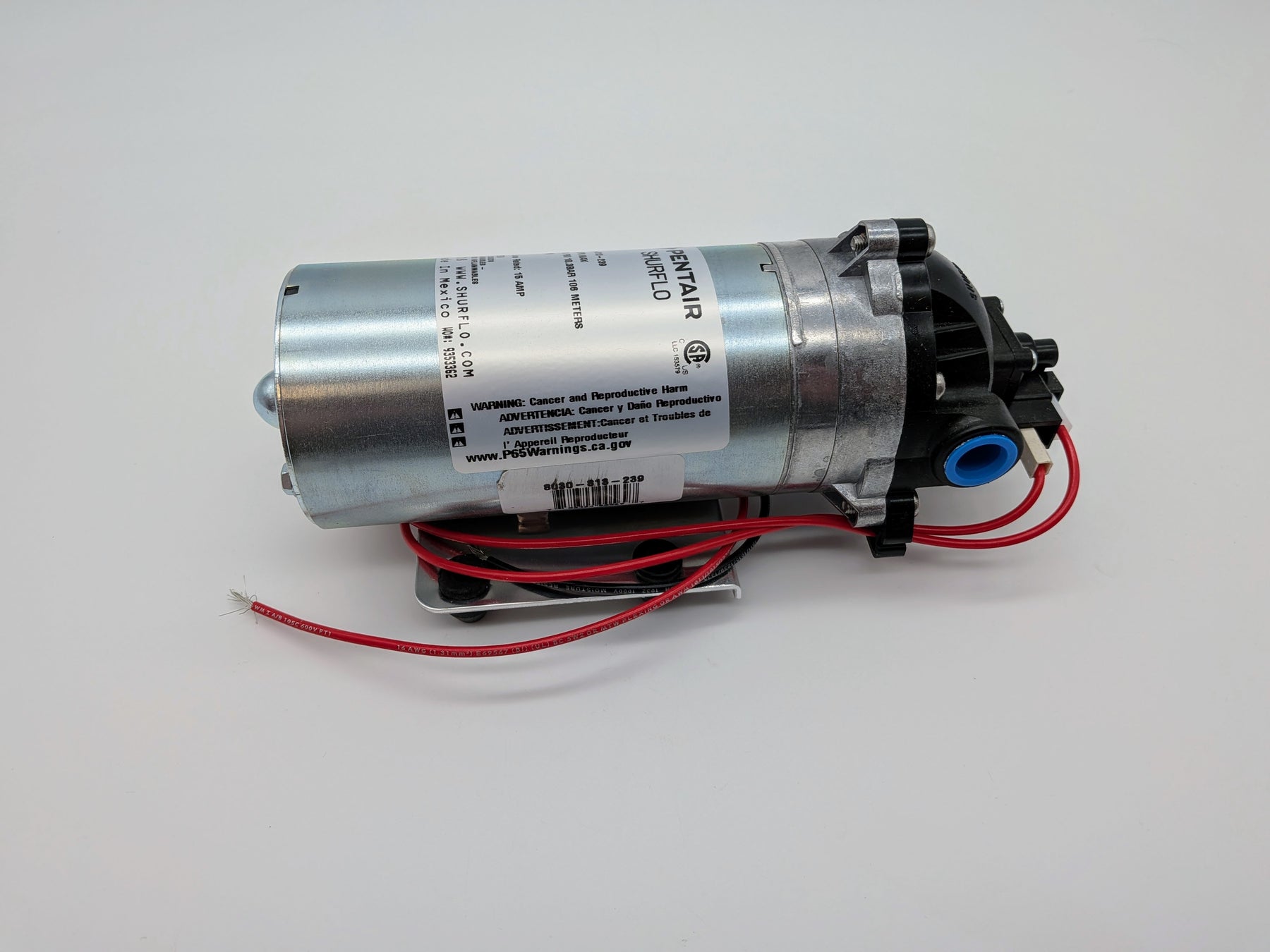

MODEL NUMBER: 8030-813-239
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 140-160 PSI)
Factory Set @ 150 PSI, Turn On 150 PSI
LIQUID TEMP.: 180° Fahrenheit (82° Celsius)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS - Nylon
VALVES - Viton
DIAPHRAGM - Santoprene
FASTENERS - Zinc Plated Steel
NET WEIGHT: 5.9 LBS (2.7 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Agricultural Spraying
