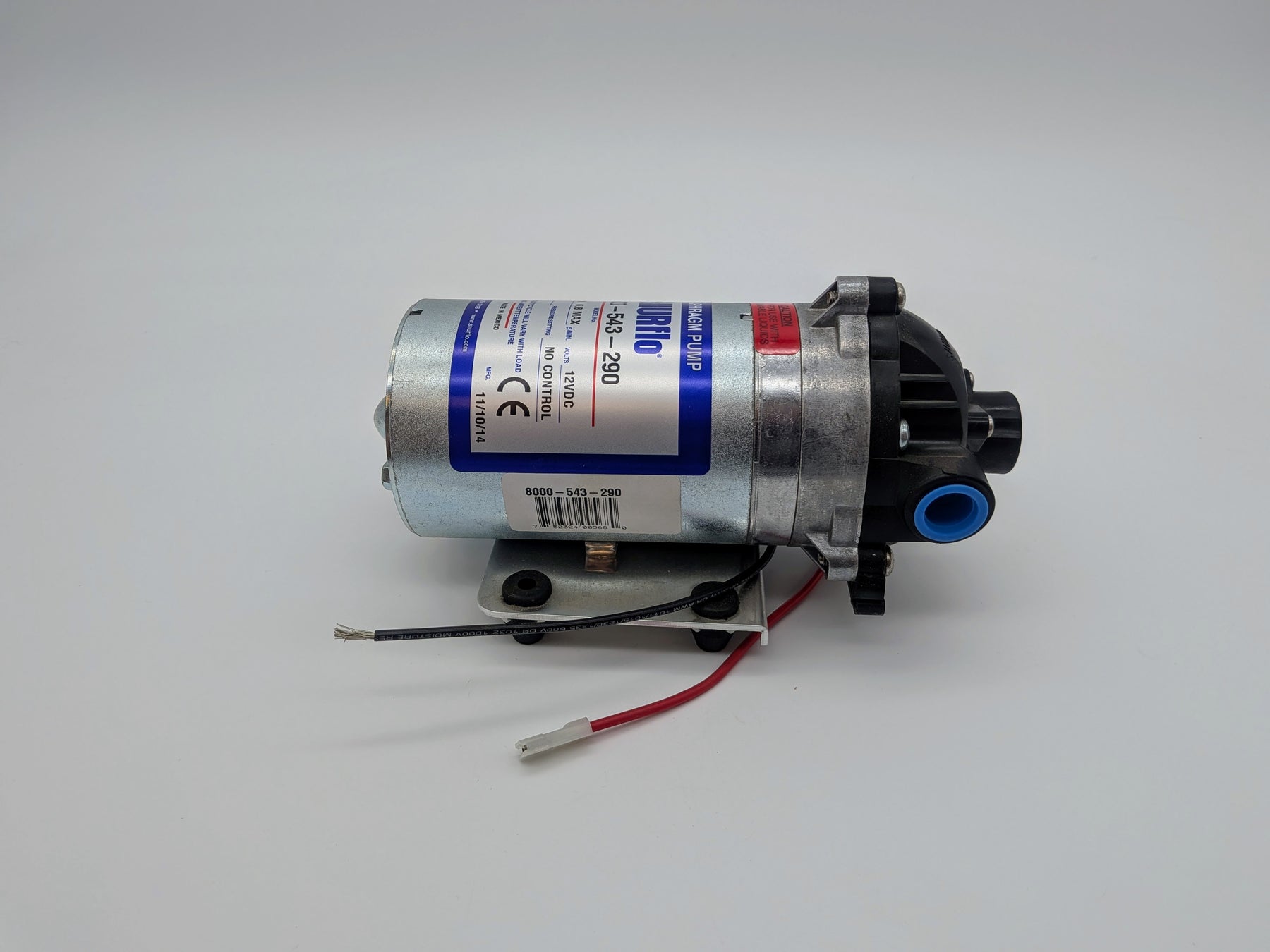

The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages.
This pump is designed o accommodate application that have external pressure valves plumbed into the system.
- 1.8 GPM / 6.8 LPM open flow
- 12VDC, 8.8 AMP MAX
- 3/8" Female Ports
- 100 PSI Max

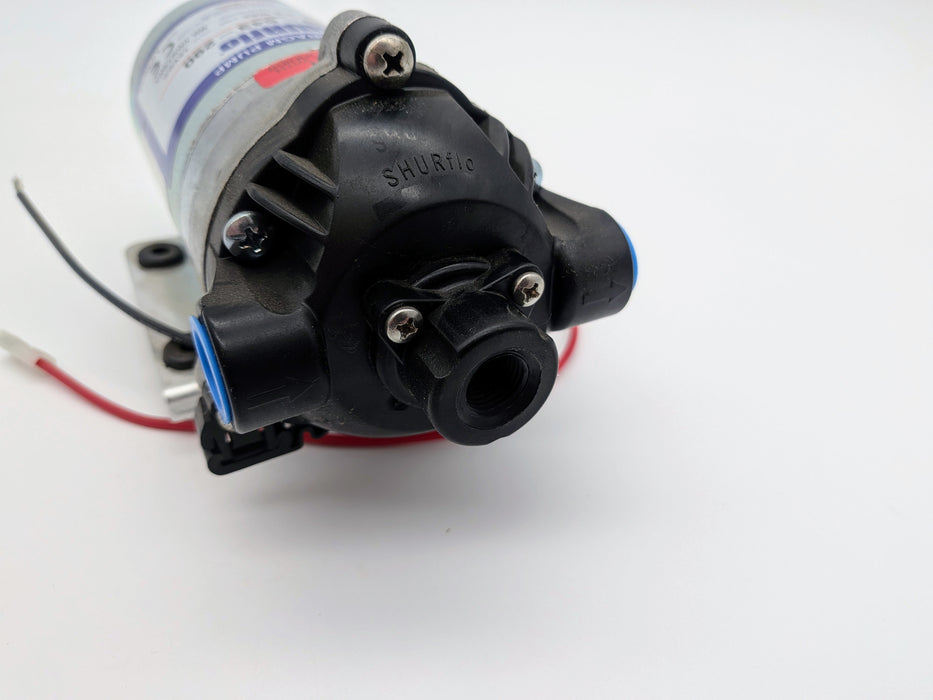

- 1/4" adapter for external bypass hook-up
- Self-Priming up to 8 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture

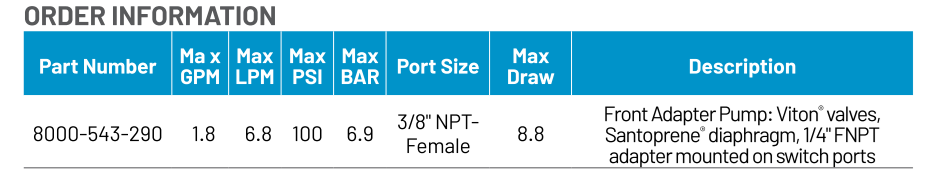

MODEL NUMBER: 8000-543-290
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm
VOLTAGE: 12 VDC Nominal
LIQUID TEMP.: 170° Fahrenheit (77° Celsius)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS - Polypropylene
VALVES - Viton
DIAPHRAGM - Santoprene
FASTENERS - Zinc Plated Steel
NET WEIGHT: 4.0 LBS (1.8 Kg)
DUTY CYCLE: Continuous
TYPICAL APPLICATIONS: Agricultural Spraying
