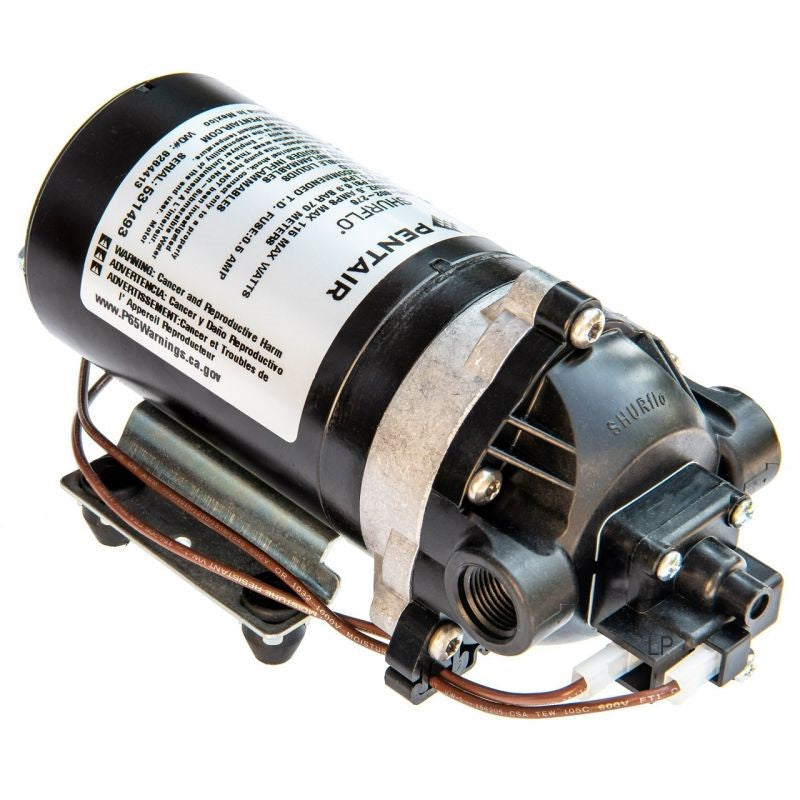

The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages.
- 1.4 GPM / 5.3 LPM open flow
- 230 VAC, 0.56 AMP MAX
- 3/8" Female Ports NPT
- Self-Priming up to 9 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture
MODEL NUMBER: 8090-902-278
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm
VOLTAGE: 230 VAC Nominal
LIQUID TEMP.: 180° Fahrenheit (82° Celsius)
PORTS: 3/8"-18 NPT Female
PRESSURE SWITCH: Adjustable Shut-Off (Range 80-110 PSI)
Factory Set @ 100 PSI, Turn On 75 PSI
INTERNAL BYPASS: 80 PSI
MATERIAL OF CONSTRUCTION:
PLASTICS - Nylon
VALVES - EPDM
DIAPHRAGM - Santoprene
FASTENERS - Zinc Plated Steel
NET WEIGHT: 4.8 LBS (2.18 Kg)
DUTY CYCLE: Intermittent
APPROVALS: VDE Approved
TYPICAL APPLICATIONS: Soil Extraction
