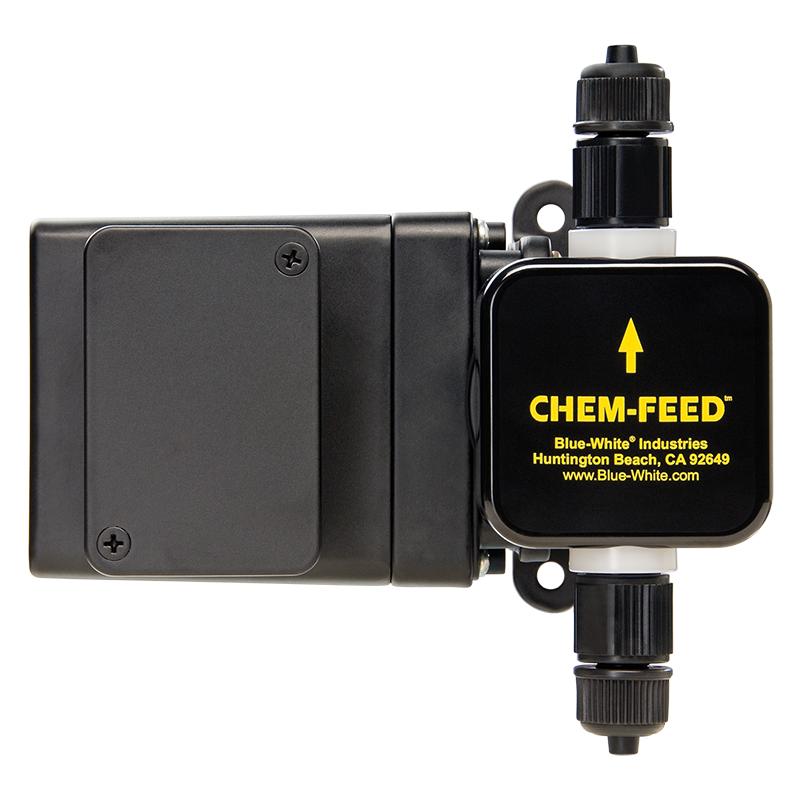

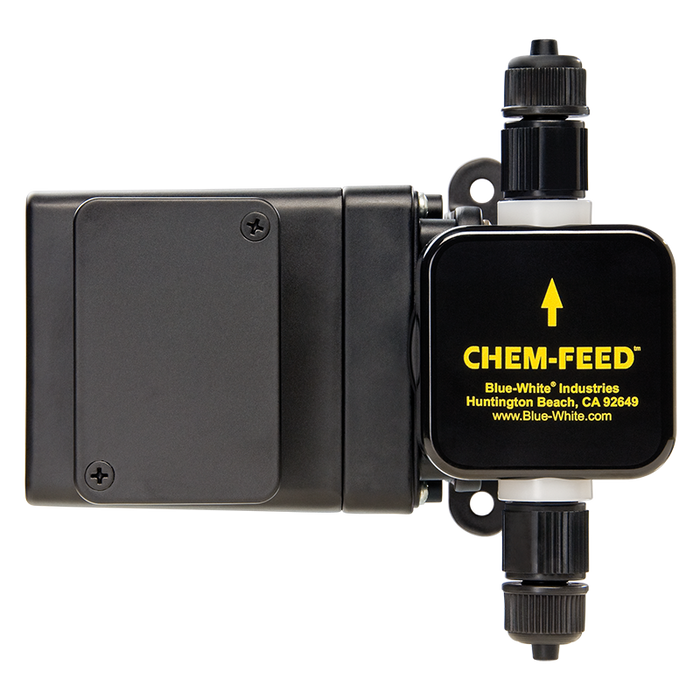

Blue-white Seriers C-600P Pump
Model: C-630P-115VAC

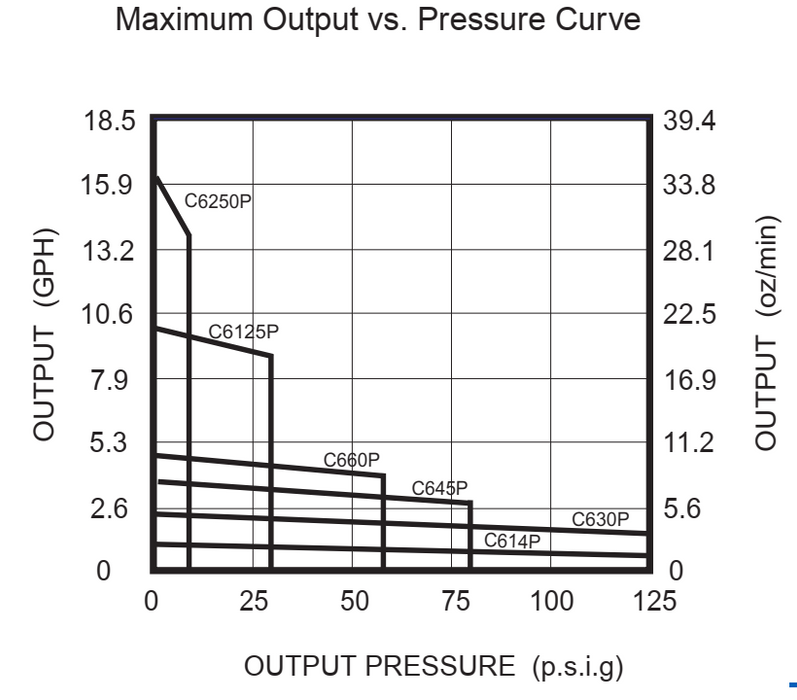

Flowrate: 3.1 GPH, Max 125 PSI
Motor Speed:: 30RPM
Voltage: 115V60HZ 45W
Benefits:
- All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
- Double-ball inlet and outlet cartridge type ceramic check valves. Chemical resistant PVDF pump head, valve body and fittings, ceramic balls, FKM static seals and TFE/P ball seat orings. No metal springs are used.
- Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute. 27:1 turndown
- PTFE coated Ethylene Propylene diaphragm can handle a wide variety of applications.
- Durable metal epoxy coated construction.
- PVDF suction (foot) valve with FKM and TFE/P o-rings, ceramic check ball and removable polypropylene filter screen.
- Includes 3/8” OD x 1/4” ID suction and discharge tubing, Injection fitting with spring-loaded check valve and all mounting hardware.
What’s Included:
- C-600P Diaphragm Metering Pump
- Discharge injection fitting with check valve
- Suction tube – clear PVC – 5′ length (3/8″ OD, 1/4″ ID)
- Suction foot valve / strainer
- Suction ceramic weight
- Discharge tube – polyethylene 5′ length (3/8″ OD, 1/4″ ID)
- Mounting hardware kit
