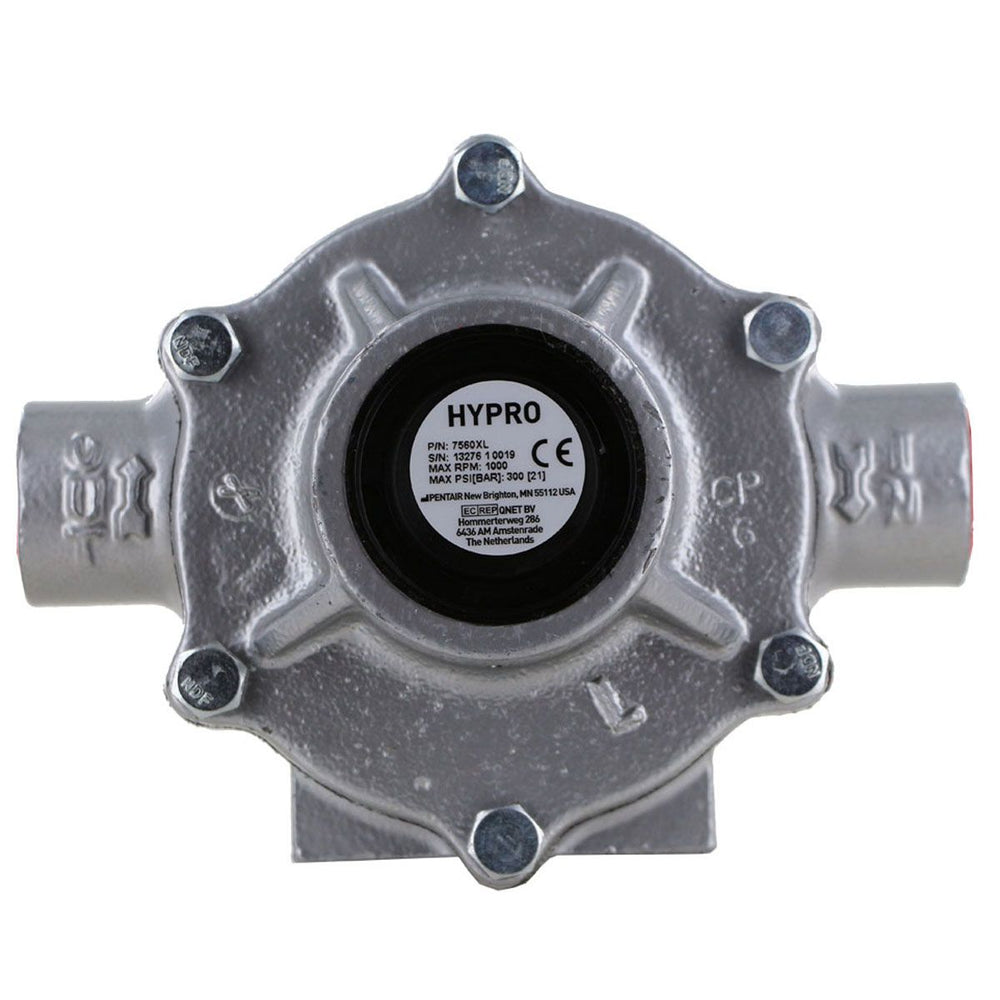

The Hypro 7560XL roller pump is recommended for pumping water and agricultural herbicides. Using wettable powders on a roller pump will shorten the life of the rollers because of friction.
Hypro 7560XL is constructed of Silvercast® and RoundUp®-ready.
You will be required to use the 7560XL-R (that is, to reverse the pump) if you are driving the pump off of a gas engine where the shaft of the pump is pointing at the shaft of the engine.
- Housing and Rotor: Silvercast®
- Max. Flow: 22 GPM (85.2 L/min)
- Max. Pressure: 300 PSI (20.7 bar) intermittent, 100 psi (6.9 bar) continuous
- Maximum Pump Speed: 1000 RPM
- Max. Fluid Temperature: 140° F (60° C)
- 3/4" (19 mm) NPT inlet and outlet.
- 15/16" (24 mm) solid stainless steel shaft.
- Viton® seals and Super Rollers for chemical resistance.
- Pump Shaft Rotation: Counterclockwise CCW (7560XL-R has clockwise CW)
- Weight: 13 lbs. (5.9 kg)
- Recommended Repair Kit: 7560 Repair Kit 3430-0381
